380-600V Electroplating Rectifiers Pulse And Pulse Reverse DC Power Supplies

Product Categories
Guangzhou Precise Heater Co., Ltd.
Contact Now

380-600V Electroplating Rectifiers Pulse And Pulse Reverse DC Power Supplies

  • 1
  • 2
  • 3

Brand Name : Precise Heater

Model Number : RRP1001

Certification : CE,UL,CSA

Place of Origin : China

MOQ : 1 unit

Price : 600 - 4000 U.S Dollars

Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram

Packaging Details : export Wooden Case

Output type : Single

Output Frequency : 50Hz/60Hz

Input Voltage : 380-600V

Function : with remote control box and timer

Feature : High Frequency

Contact Now

Pulse and pulse reverse DC power supplies - Plating electronic used in Electroplating Industry

380-600V Electroplating Rectifiers Pulse And Pulse Reverse DC Power Supplies

Output power: max. 64000 Watts
Effective - and DC-current: max. 4240 A
Pulse current: max. 9600 A
Effective voltage: max. 6 V

Output power: max. 2 x 16000 Watts (max. 4 x 8000 Watts)

Effective - and DC-current: max. 2 x 1060 A (max. 4 x 424 A)

Reverse-current: max. 2 x 2400 A (max. 4 x 960 A)

Effective voltage: Standard 2 x 6 V (4 x 6 V), other voltages on request (up to 600V)

Typical applications:

PCB lines

Characteristic values

Switch mode technology

Dual output, 4-fold output (single output optional) (see below matrix)

Linearity inaccuracy < 1 % (related to nominal DC value)

Ripple less than < 1 % (related to nominal DC value)

Complex waveforms

Constant current regulation (voltage regulation on request)

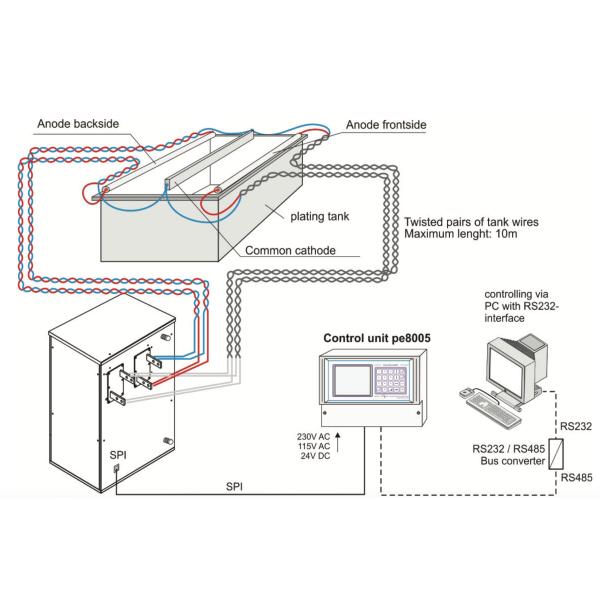

SPI interface for control unit pe8005

Fast rise and fall times (rectangular waveforms)

Permanent short circuit and open circuit proof

Microprocessor controlled regulation

Mains supply: standard 380 V - 460 V/3~ +/- 10 % / 50-60 Hz Optional: 200 V - 240 V/3~ +/- 10 % / 50-60 Hz

Max. effective output power: see below matrix

Cooling

Water cooled (designed for the direct installation at the electroplating tank)
Ambient temperature 40°C
Over temperature protected

Design

Compact stainless steel casing; protection grade IP54

DC/Pulse connection in back panel (tin copper bus bars)

Type

pe80CD122 / pe80CD124

pe80CD202 / pe80CD204

pe80CD322 / pe80CD324*

pe80CD402 / pe80CD404*

Forward current

2 x 120 A / 4 x 120 A

2 x 200 A / 4 x 200 A

2 x 320 A / 4 x 320 A

2 x 400 A / 4 x 400 A

Reverse pulse current

2 x 360 A / 4 x 360 A

2 x 600 A / 4 x 600 A

2 x 960 A / 4 x 960 A

2 x 1200 A / 4 x 1200 A

Current ratio IF : IR

free adjustable

Effective current / DC

2 x 159 A / 4 x 159 A

2 x 265 A / 4 x 265 A

2 x 424 A / 4 x 424 A

2 x 530 A / 4 x 530 A

Minimum time reverse-pulse

0,1 msec.

Water cooling

Max. water inlet temperature

23 - 26°C

Max. water outlet temperature

40°C

Water consumption approx.

3 l/min (*3,6 l/min)

Type

pe80CD442

pe80CD482

pe80CD522

pe80CD602

Forward current

2 x 440 A

2 x 480 A

2 x 520 A

2 x 600 A

Reverse pulse current

2 x 1320 A

2 x 1440 A

2 x 1560 A

2 x 1800 A

Current ratio IF : IR

free adjustable

Effective current / DC

2 x 583 A

2 x 636 A

2 x 689 A

2 x 795 A

Minimum time reverse-pulse

0,1 msec.

Water cooling

Max. water inlet temperature

23 - 26°C

Max. water outlet temperature

40°C

Water consumption approx.

3 l/min

3,4 l/min

Type

pe80CD642

pe80CD722

pe80CD762

pe80CD802

Forward current

2 x 640 A

2 x 720 A

2 x 760 A

2 x 800 A

Reverse pulse current

2 x 1920 A

2 x 2160 A

2 x 2280 A

2 x 2400 A

Current ratio IF : IR

free adjustable

Effective current / DC

2 x 848 A

2 x 954 A

2 x 1007 A

2 x 1060 A

Minimum time reverse-pulse

0,1 msec.

Water cooling

Max. water inlet temperature

23 - 26°C

Max. water outlet temperature

40°C

Water consumption approx.

3,7 l/min

4,1 l/min

4,4 l/min

4,6 l/min

Operation / programming
(via external pe8005 control unit)

Large illuminated 5,7“ graphic display
5 x 4 keypad for easy handling and navigation

Clear and user friendly menu navigation via well structured pull down menus

Easy generation of complex waveforms with up to 16 individual steps with 2 individual amplitudes (Ix1 and Ix2 as well as tx1 and tx2), that can be positive or negative

MMC/SD card reader for software update, import / export of device configuration, set values and storing of bus-logging data

RS485 interface (optional: PROFIBUS or TCP/IP) Synchronization function
2 programmable output relays
Ah-totalizer, dosage counter, timer Programmable START ramp

Parameters individually adjustable even during operation

Display

Clear display of actual values

Graphic view of the set value shape, actual values shown in oscilloscope-mode with real time oscilloscope-function

Status, warning and error indication

Resolution

0 up to +/- xx.xA for Ix1 and Ix2; resolution: 100mA
0 up to 9 999.9mSec for tx1 and tx2; resolution: 0,1mSec Cycles (repeatings per step): 1 - 99

380-600V Electroplating Rectifiers Pulse And Pulse Reverse DC Power Supplies

380-600V Electroplating Rectifiers Pulse And Pulse Reverse DC Power Supplies
380-600V Electroplating Rectifiers Pulse And Pulse Reverse DC Power Supplies
